Serge Modular Archive Instrument

check out the GitHub Repo for this project.

The Serge Modular Archive Instrument (created in collaboration with Jean Brazeau) is a sample-based computer emulation of selected patches on the vintage Serge Modular instrument that is housed at Simon Frasier University in Vancouver, Canada. The project is conceived of as both an instrument for sonic exploration and an archive of the sound worlds made by this 50+ year old instrument, including (or highlighting) all of the idiosyncrasies it has accumulated over the years.

Recording & Analysis

For each patch included (currently there are five) we recorded tens of thousands of one-second samples of different parameter settings by systematically stepping through parameter combinations (sent to the Serge using the Expert Sleepers ES-3). These samples were then analyzed using the FluCoMa Toolkit for analyses such as pitch, spectral descriptors, timbral descriptors, loudness, and more. The data set created is then reduced to two dimensions using PCA and then UMAP.

Control

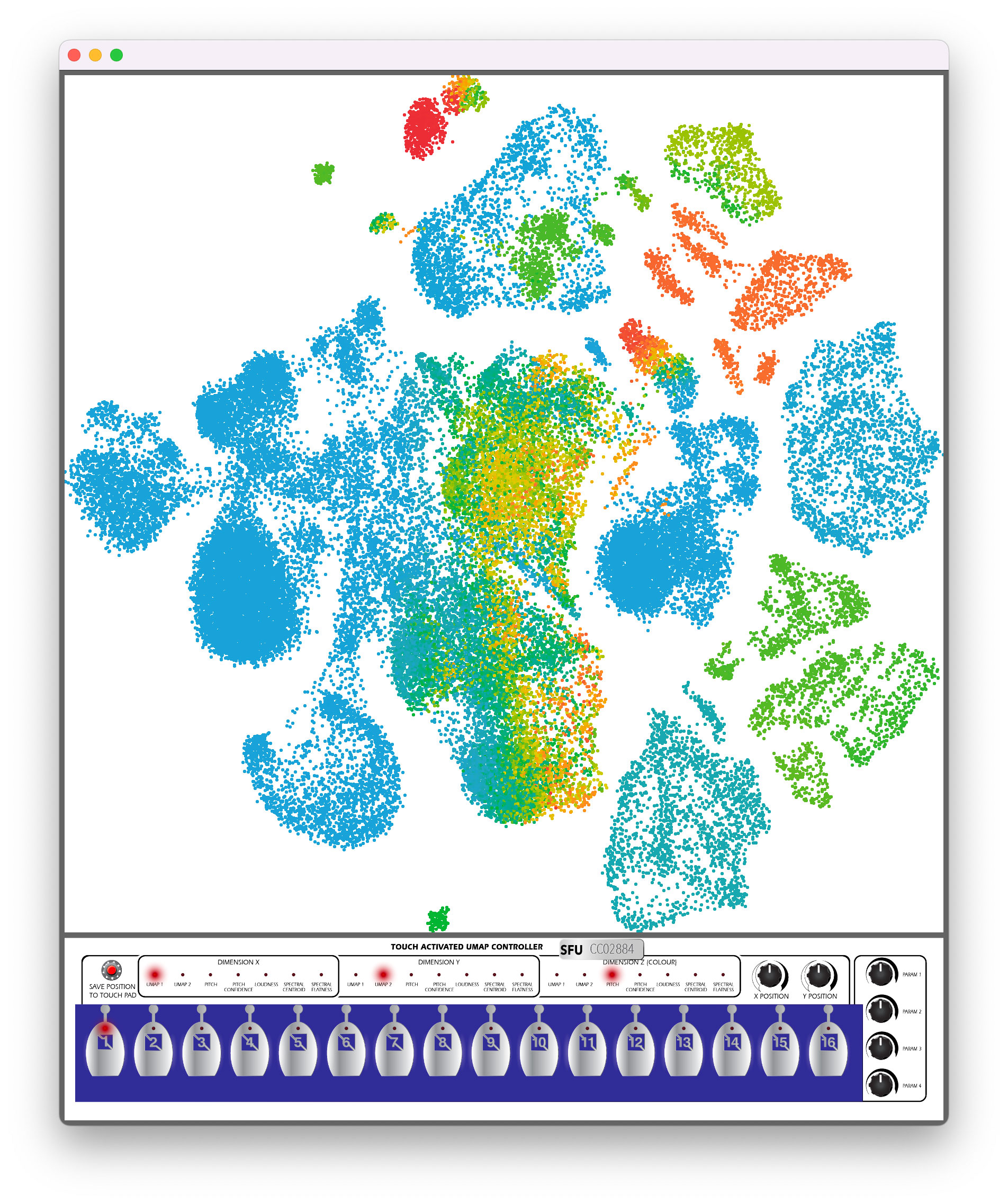

These audio samples can then be accessed by navigating a two-dimensional plot (plus color), which can show the sound samples according to pitch, pitch confidence, loudness, spectral centroid, spectral flatness, or either of the two UMAP dimensions. Additionally, a skeuomorph of the Serge Modular highlights which knobs control the synthesis parameters used, allowing the user to imitate controlling the vintage instrument. Beneath the two-dimensional plot there is a step sequencer for storing chosen samples to be returned to in sequence.

All of the control parameters (including x and y plot navigation, skeuomorph knobs, and step sequencer) are controllable via MIDI and OSC allowing user defined control of the instrument.
